12V motor winch with synthetic rope
Prices are hidden for this category and your customer group
Available, delivery time: 4-5 Tage
12V winch with synthetic rope: pulling force up to 2722 kg
This 12V winch synthetic rope set suits cars and is especially well suited to mounting on quads, ATVs (4x4) and commercial vehicles. The electric winch delivers a pulling force of up to 2722 kg (when used with a deflection roller) and is operated by cable or radio remote control.
Key benefits at a glance
High pulling force
Pulling force of up to 2722 kg when used with a deflection roller (not included). At 680 kg the pulling speed is 2.4 m/min.
Remote operation
Electronic forward and reverse via the cable remote control or the radio remote control.
Safe in a power failure

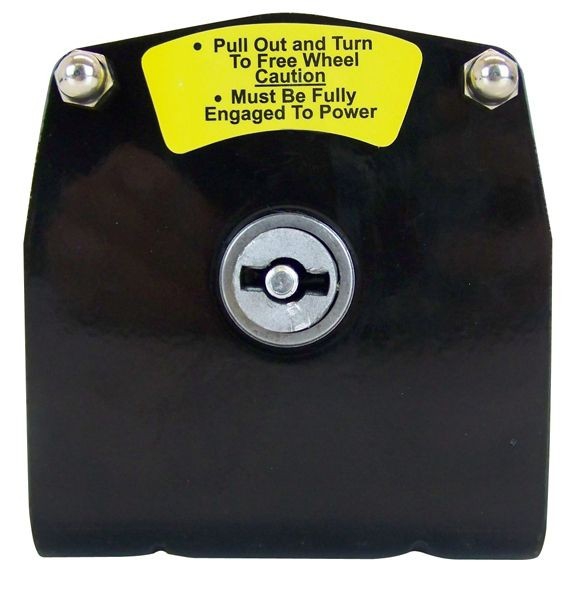

Manual freewheel and automatic brake in case of power failure.
Well-engineered
3-stage planetary gear with a gear ratio of 153:1 and an aluminium cable window.
Synthetic rope
The synthetic rope is 12 m long with a diameter of 4.8 mm.
Installation
Supplied with detailed assembly instructions. The mounting plate measures 124 x 76 mm.
Use and application
The winch is suitable for use on cars and especially for mounting on quads, ATVs (4x4) and commercial vehicles. Important: never unroll the rope completely, only as far as the red mark on the rope.
Technical data
| Pulling force | 2722 kg when used with a deflection roller (not included) |
|---|---|
| Output | 900 W / 75 A |
| Motor | 12 V direct current, 1.2 KW |
| Gear ratio | 153:1 |
| Dimensions | 300 x 110 x 105 mm |
| Drum dimensions | 31.5 mm diameter, width 73 mm |
| Synthetic rope | 12 m long, 4.8 mm diameter |
| Mounting plate | 124 x 76 mm |
| Weight | 8 kg |
| Manufacturer | Berger + Schröter GmbH |
| EAN | 4042504317785 |
Frequently asked questions
What pulling force does the 12V winch with synthetic rope have?
The pulling force is up to 2722 kg when used with a deflection roller, which is not included.
How is the winch operated?
Forward and reverse are electronic, via the cable remote control or the radio remote control.
Trade prices and availability are shown after login in the B2B shop.
