Manual winch with (load pressure) brake, without rope, 600kg
Prices are hidden for this category and your customer group
Available, delivery time: 4-5 Tage

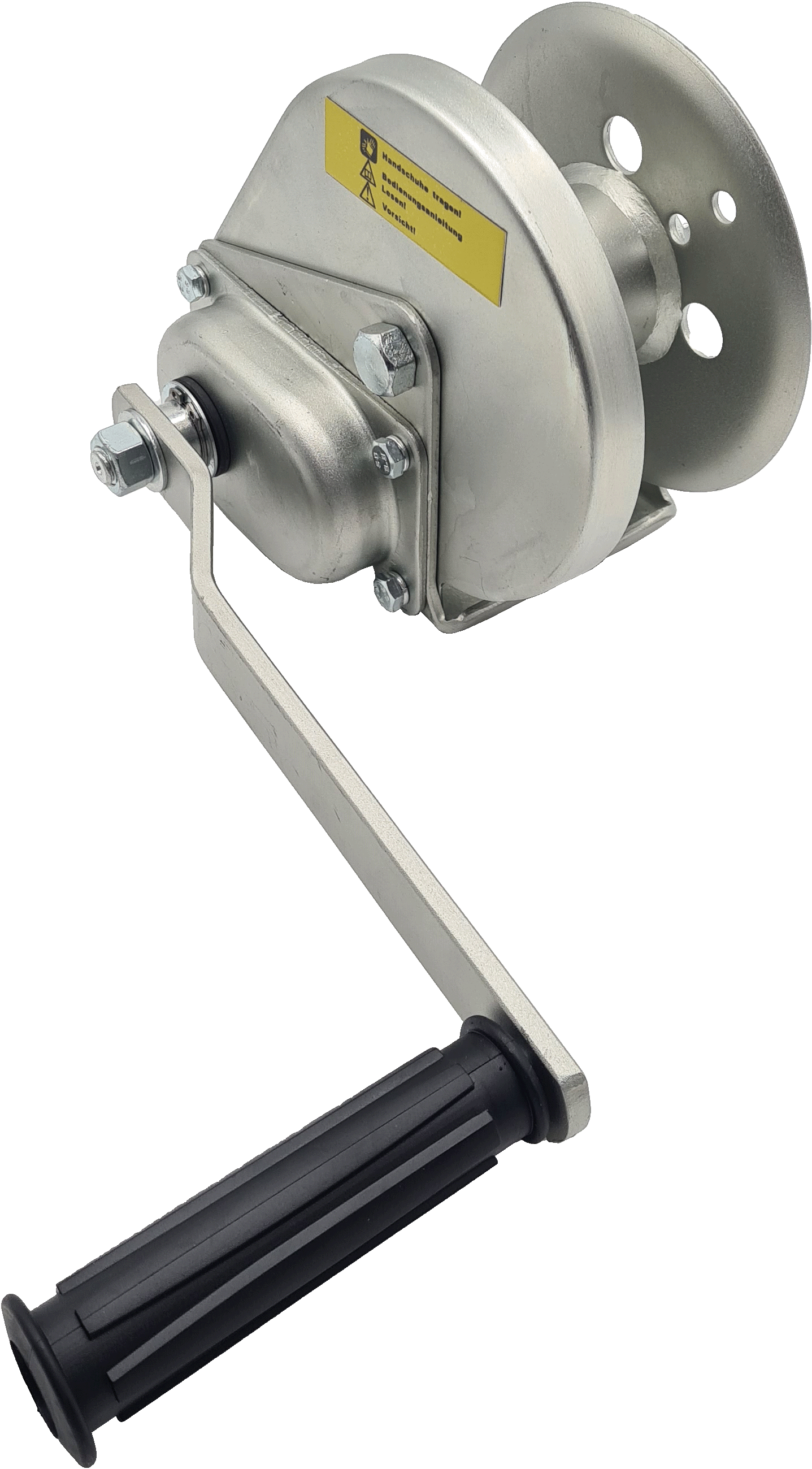

Manual winch with load pressure brake for loads up to 600 kg
With this manual winch with (load pressure) brake you can easily lift or pull loads of up to 600 kg. It is easy to install anywhere, protected against corrosion by galvanisation, and ideal at work or in leisure and hobby.
Key benefits at a glance
Up to 600 kg
Loads of up to 600 kg can be easily lifted or pulled.
Corrosion protection
Protected against corrosion by galvanisation.

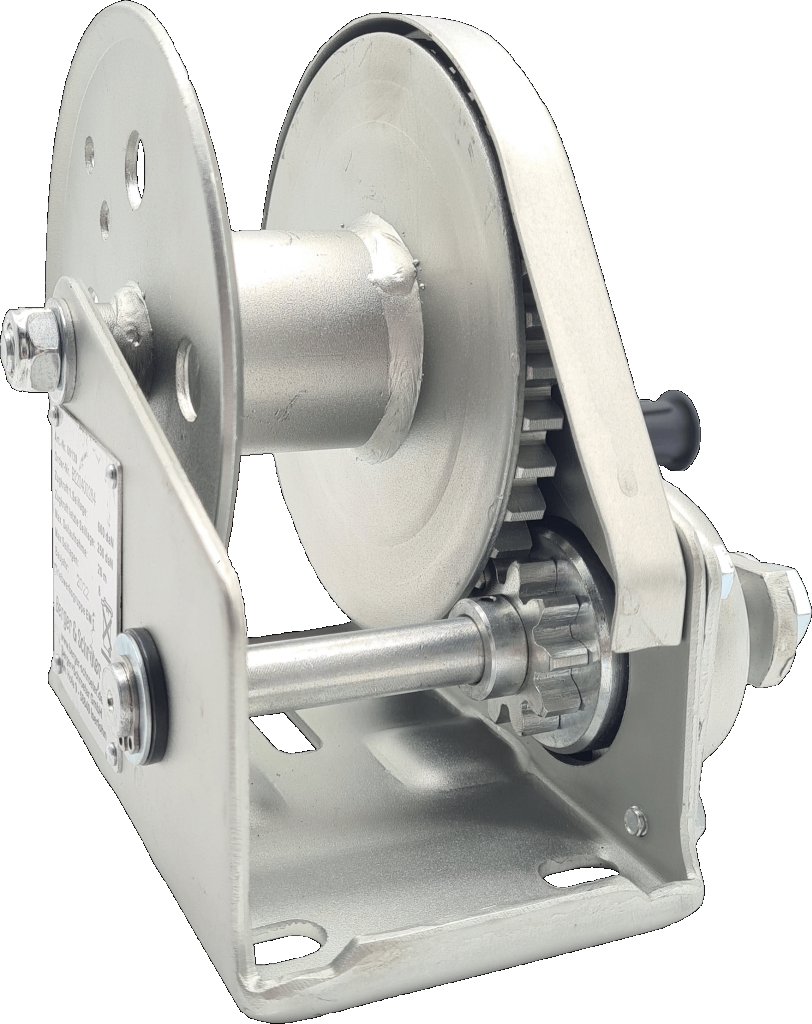

Sturdy gearbox
Closed gearbox with a stable gear design and a 4:1 ratio.
Easy to install
Easy to install anywhere.
Use and application
The hand winch is ideal at work or in leisure and hobby, for example hunting, boat or garden. It is supplied without rope and is designed for 6 mm rope.
Technical data
| Max. load | 600 kg |
|---|---|
| Rope | 6 mm, max. rope length 20 m in 8 layers (rope not included) |
| Ratio | 4:1 (gear ratio) |
| Drum diameter | 48 mm inner, 156 mm outer |
| Crank length | 208 mm |
| Overall dimensions (WxHxD) | 150 x 155 x 180 mm |

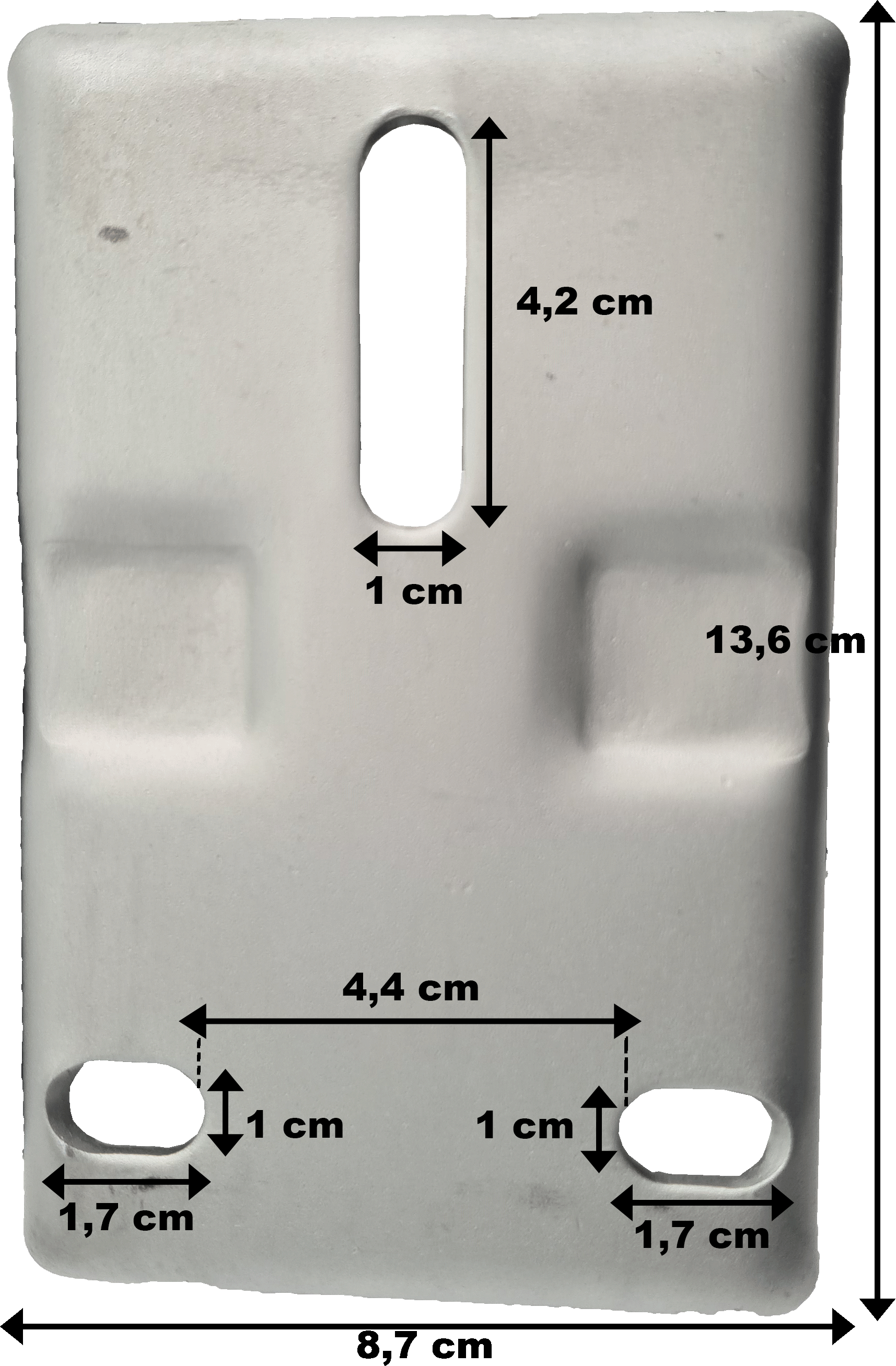

| Foot plate (LxW) | approx. 140 x 80 mm |
| Finish | galvanised |
| Manufacturer | Berger + Schröter GmbH |
| EAN | 4042504601303 |
Frequently asked questions
How much load can the manual winch handle?
Loads of up to 600 kg can be easily lifted or pulled with the manual winch.
Is a rope included?
No, the winch is supplied without rope and is designed for 6 mm rope.
