Drill winch, winch for cordless drill-screwdriver Mobile universal cable winch for operation with a cordless screwdriver (min. 4Nm) or drilling machine (both not included) Up to 225 kg tractive force Approx. 12 m rope (4mm diameter) with fixing hooks Dimensions approx. LxWxH = 39x20x23 cm Weight approx. 5. 7 kg Rope speed 1m/min (depending on cordless screwdriver)

cable hoist 200/400kg 18m, new version For all lifting operations in garages, household and farms. Easy  to install in different places, simply mounted on a round tube (with max. 50 mm diameter) with gripper clamps. Remote control with dead-mans-switch for safer operation. Remote control panel has protection class II, IP 54,  GS approved, automatic switch off  in upper and lower end position. Immediate stop on circuit break down. Long lasting gear. Non-twisting wire rope protects from turning load while lifting. Hook with safety shackle. Motor with overload protection protects from overheating. Roll with hook. Mounting with 2 double gripper clamps. Total length of cable remote control: approx.. 170 cm, power cable length incl. plug 60 cm. With detailed manual. Technical data: Lifting capacity 200/400 kg, Wire rope length 18 m, Wire rope diameter 3,6 mm, Lifting height 17 m / with roll 8,5 m, Power consumption 950 Watt, 4,3 Amp., Measurement (lxwxh) 44x15x25 cm, Weight 17,5 kg.

Electrical cable pull 300/600kg, 18m For all lifting work in workshops, agriculture and household Simple commissioning at different locations possible, mounting z. B. on a round pipe with clamps Operation via dead man's switch ensures safe working Operating switch is protection class II IP 54 Limit switch for immediate switch-off in the upper and lower end position Immediate braking effect in case of power failure Long-term gear with long service life of the drive Low twist steel rope reduces twisting of the load during lifting Cargo hook with additional safety strap The motor with overload protection prevents the motor from overheating Sheave with load hook Mounting with two sturdy double clamps Cable length incl. Operating switch: approx. 170 cm Cable length power supply incl. Plug approx. Two feet. ( Delivery without swivel arm) With detailed assembly instructions

Cable tensioning device up to 4t, 3 m cable, 3 hooks For tensioning and pulling loads up to 4t Double sprockets for double safety Low deadweight Incl. approx. 3m wire rope 4t version with third hook for straight pull without deflection control

Endless Cable hoist, 3200 kg, for theoretically endless ropes, GS approved, safe pulling, feed rate 28 mm, for cables with 16 mm diameter, 23 kg weight, necessary work force of about 438 N. Incl. 20 m rope.

cable hoist 495/990kg 18m, new version For all lifting operations in garages, household and farms. Easy  to install in different places, simply mounted on a round tube (with max. 50 mm diameter) with gripper clamps. Remote control with dead-mans-switch for safer operation. Remote control panel has protection class II, IP 54,  GS approved, automatic switch off  in upper and lower end position. Immediate stop on circuit break down. Long lasting gear. Non-twisting wire rope protects from turning load while lifting. Hook with safety shackle. Motor with overload protection protects from overheating. Roll with hook. Mounting with 2 double gripper clamps. Total length of cable remote control: approx.. 170 cm, power cable length incl. plug 60 cm. With detailed manual. Technical data: Lifting capacity 495/990 kg, Wire rope length 18 m, Wire rope diameter 4,0 mm, Lifting height 17 m/with roll 8,5 m, Power consumption 1600 Watt, 7,5 Amp., Measurement (lxwxh) 55x17x25 cm, Weight 35 kg.

Cordless electric hoist, 125/250 kg, 18 V ⦁ For all lifting work in workshops, agriculture, and households ⦁ Brushless DC motor, 200 W, 18 V DC ⦁ Battery interface: compatible with Makita batteries (BL1820 or BL1840) or batteries with a Makita adapter, for 2 Ah or 4 Ah. Battery not included! ⦁ Easy to set up, no power connection required, can be installed in different locations, e.g., on a round pipe with clamps ⦁ Operation via deadman's switch ensures safe operation ⦁ IP 23, protection class III ⦁ Operating class: A0, 4000 full load cycles ⦁ Electronic and mechanical brake (double brake protection) ⦁ Long-life gearbox with a long drive service life ⦁ Low-twist steel cable with a length of 12 m reduces twisting of the load during lifting, cable diameter: 3.18 mm, 18 x 7 + 1 WS, 1870 N/mm² ⦁ Lifting speed approx. 3,5 m/min ⦁ Load hook with additional safety latch ⦁ Duty cycle: ED 20%, with overheating protection, for long operating times. ⦁ Pulley with load hook ⦁ Attachment with two sturdy double clamps ⦁ Cable length including control switch: approx. 150 cm ⦁ Dimensions approx. 30 x 11 x 15 cm, weight approx. 8.5 kg ⦁ With detailed assembly instructions ⦁ Batteries and charger not included

Endless Cable hoist, 800 kg, for theoretically endless ropes, GS approved, safe pulling, feed rate 52 mm, for cables with 8.3 mm diameter, 6.4 kg weight, necessary work force approximately 341 N, incl, 20 m rope.

Electrical cable pull 125/250kg, 12m For all lifting work in workshops, agriculture and household Simple commissioning at different locations possible, mounting z. B. on a round pipe with clamps Operation via dead man's switch ensures safe working Operating switch is protection class II IP 54 Limit switch for immediate switch-off in the upper and lower end position Immediate braking effect in case of power failure Long-term gear with long service life of the drive Low twist steel rope reduces twisting of the load during lifting cargo hook with additional safety strap The motor with overload protection prevents the motor from overheating sheave with load hook Mounting with two sturdy double clamps Cable length incl. Operating switch: approx. 170 cm Cable length power supply incl. Plug approx. Two feet. ( Delivery without swivel arm) With detailed assembly instructions

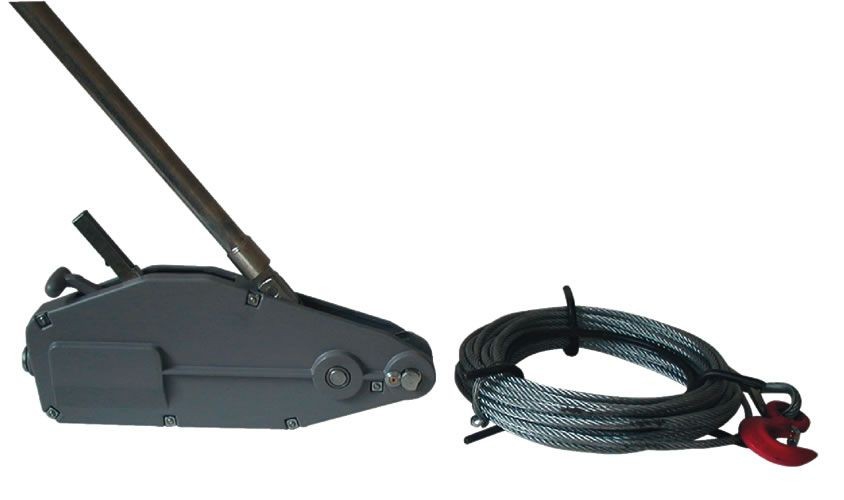

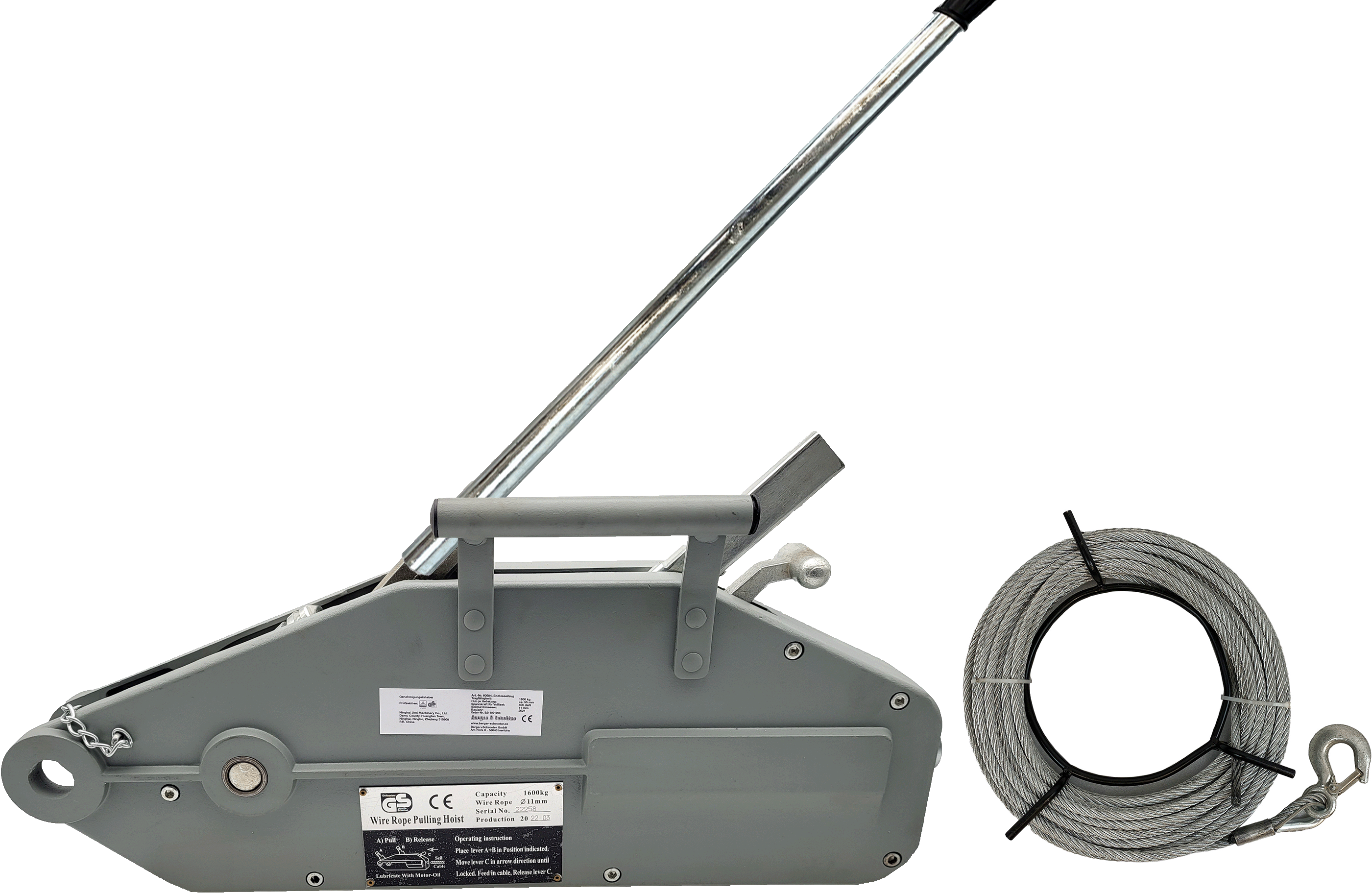

wire rope pulling hoist 1,6 t GS approved
