Rope hoist 12V, 3150 kg with metal rope
Prices are hidden for this category and your customer group
Available, delivery time: 4-5 Tage
Professional 12 V winch with steel cable and 3150 kg pulling force
This 12 V winch with steel cable delivers a pulling force of up to 3150 kg. It suits cars and is especially suitable for mounting on quads, ATVs (4x4) and commercial vehicles.
Key benefits at a glance
Up to 3150 kg pulling force
The pulling force of 3150 kg applies when using a deflection roller, which is not included.
Remote control

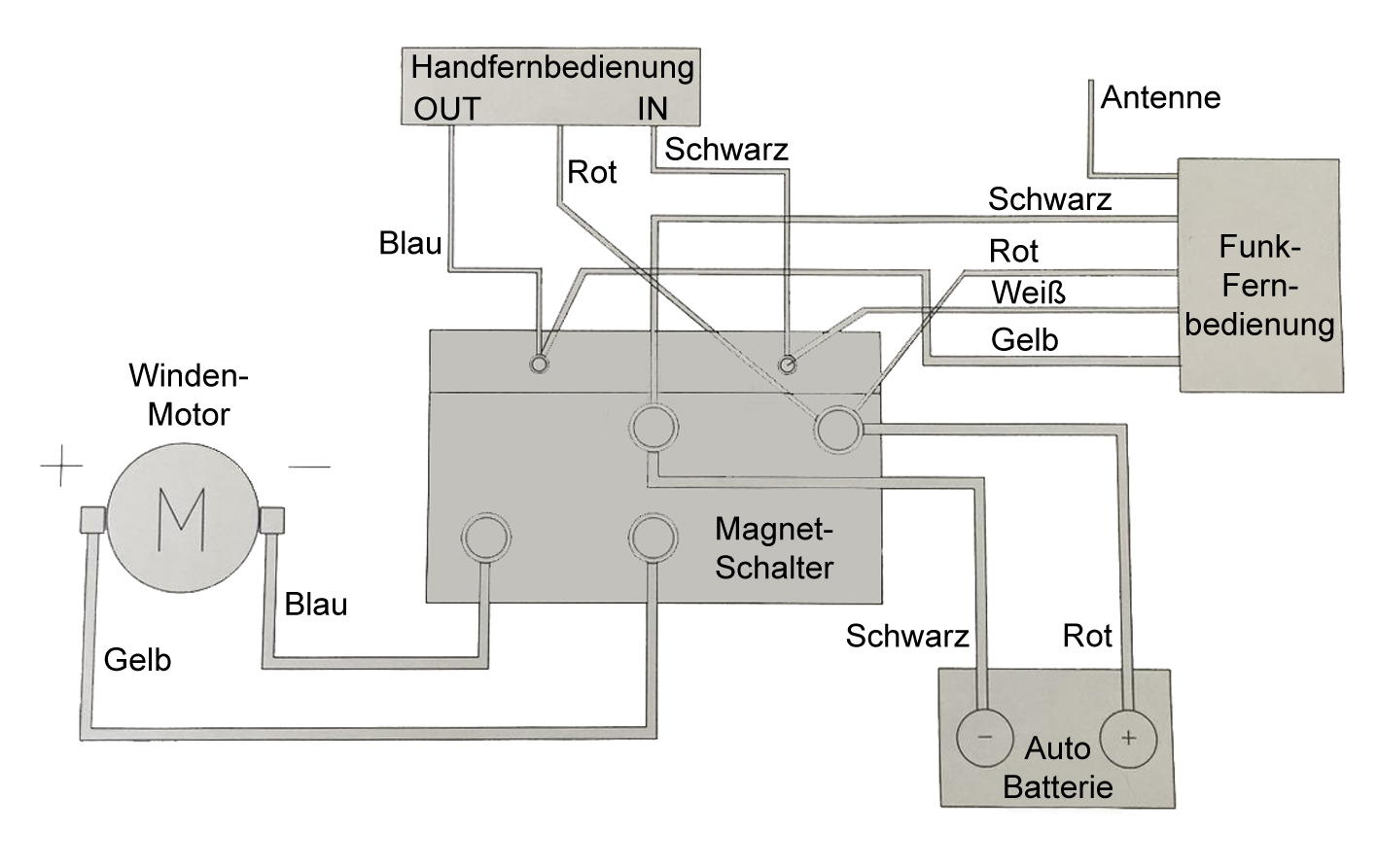

Forward and return run electronically via cable or radio remote control.
Freewheel and brake
Manual freewheel and automatic brake in case of power failure.
3-speed planetary gear
The gear ratio is 153:1 and the cable window is made of aluminium.
Assembly instructions

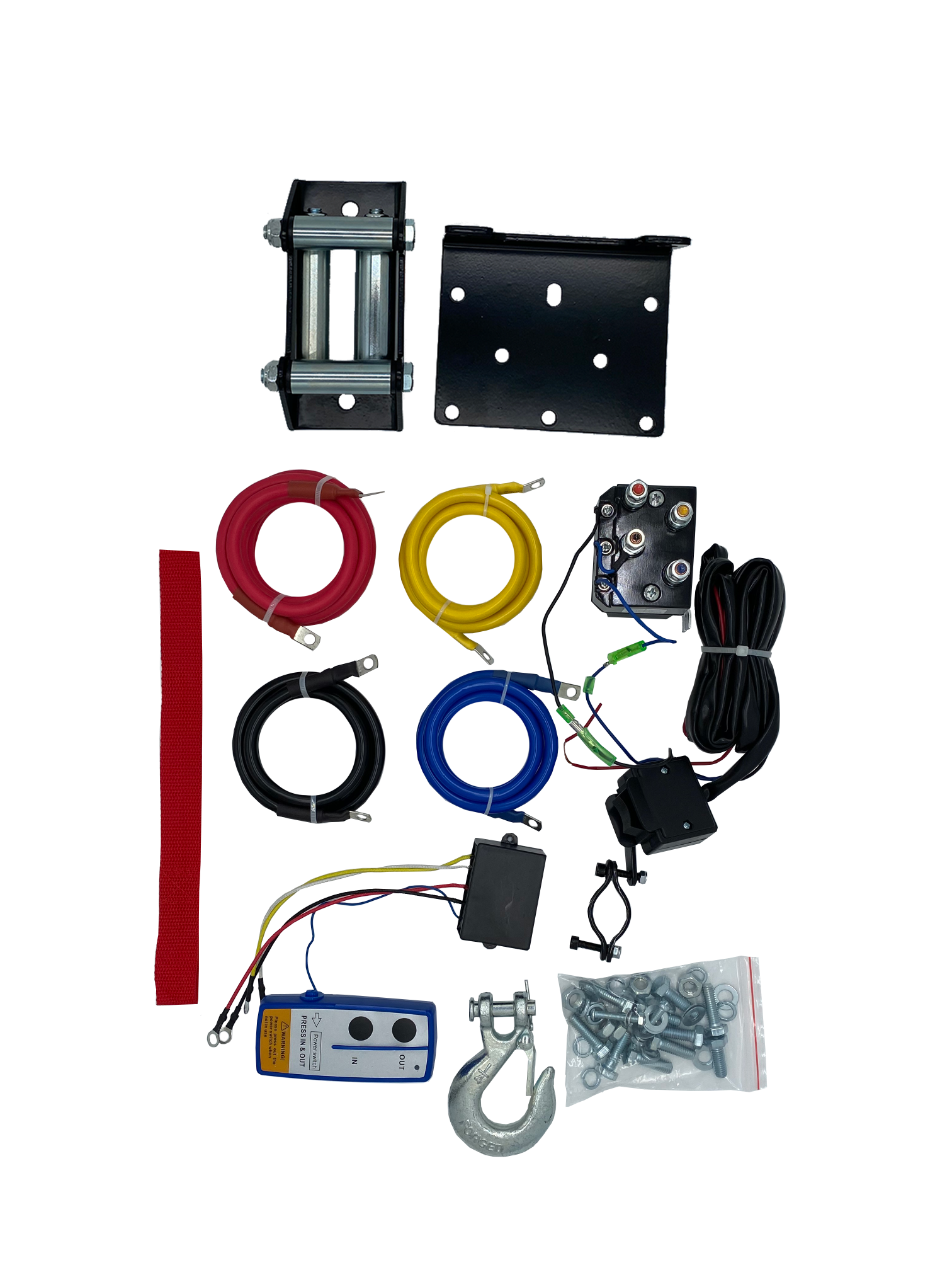

Detailed assembly instructions are included.
Applications and use
The winch is intended for mounting on cars, quads, ATVs (4x4) and commercial vehicles. Important: never unroll the rope completely, only up to the red mark on the rope.
Technical data
| Pulling force | 3150 kg (with deflection roller) |
|---|---|
| Pulling speed | 680 kg - 2.4 m/min |
| Motor | 12 V direct current, 1.2 KW |
| Load capacity | approx. 11A at start-up up to 100A at full load |
| Gear ratio | 153:1 |
| Dimensions | 335 x 114 x 120 mm |
| Drum dimensions | 38 mm diameter, width 73 mm |
| Steel cable | 14 m long, 5.5 mm diameter |
| Mounting plate | 124 x 76 mm |
| Weight | 13 kg |
| Manufacturer | Berger + Schröter GmbH |
| EAN | 4042504317679 |
Frequently asked questions
How much pulling force does the 12 V winch have?
The pulling force is up to 3150 kg when using a deflection roller.
How long is the steel cable?
The steel cable is 14 m long with a diameter of 5.5 mm.
