capstan winch, Honda engine 1,36 hp, GX 35
Prices are hidden for your customer group
Available, delivery time: 4-5 Tage
Product information "capstan winch, Honda engine 1,36 hp, GX 35"

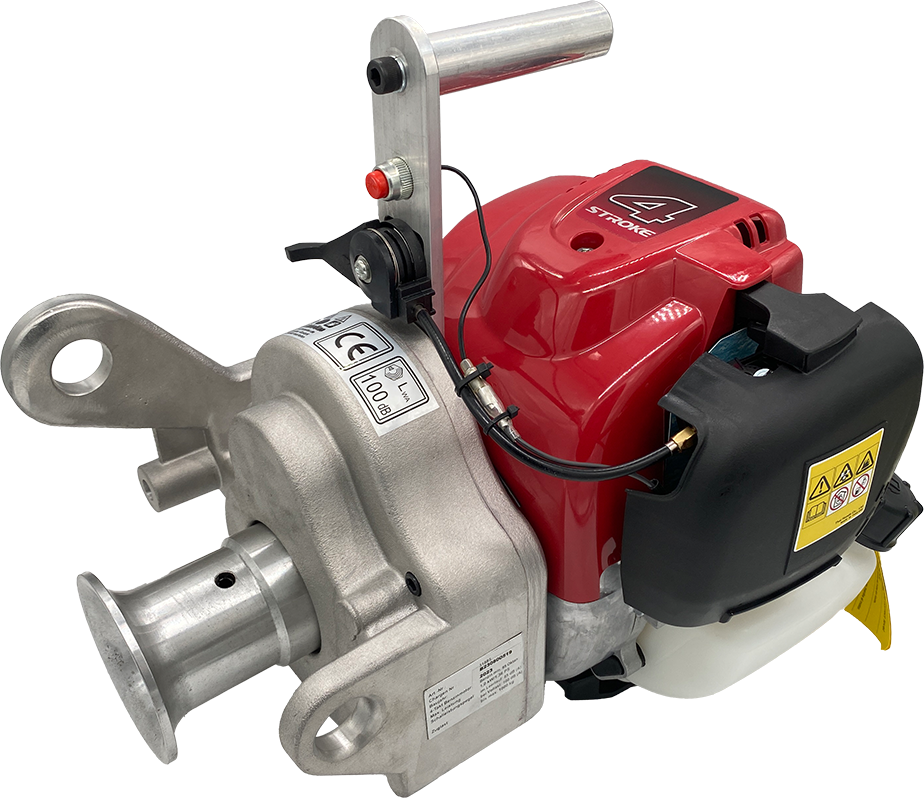

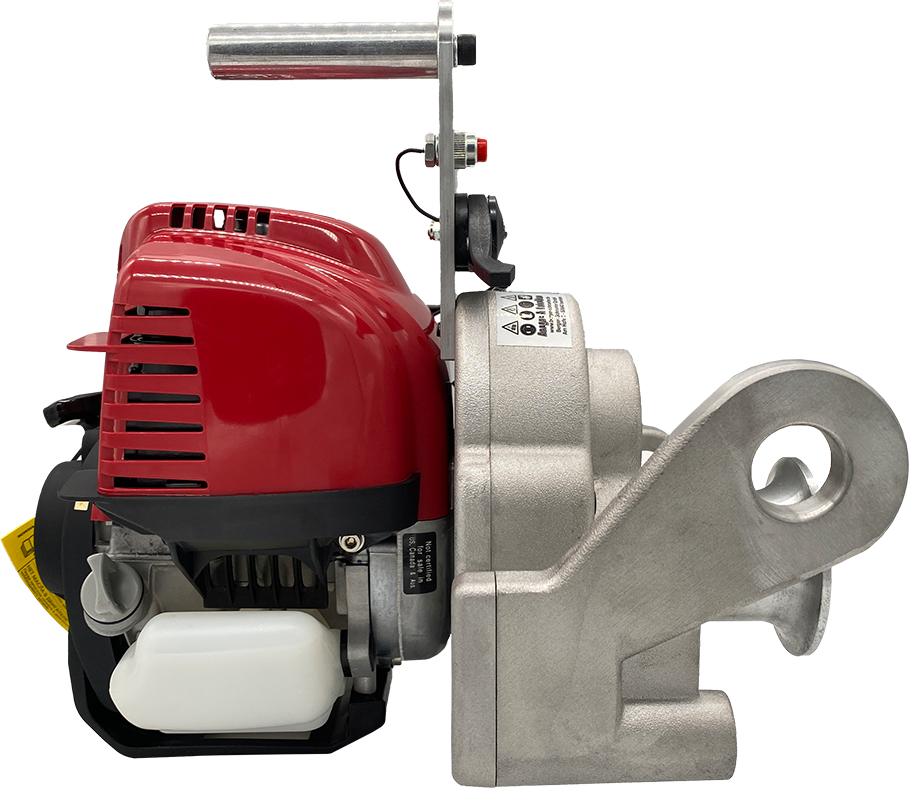

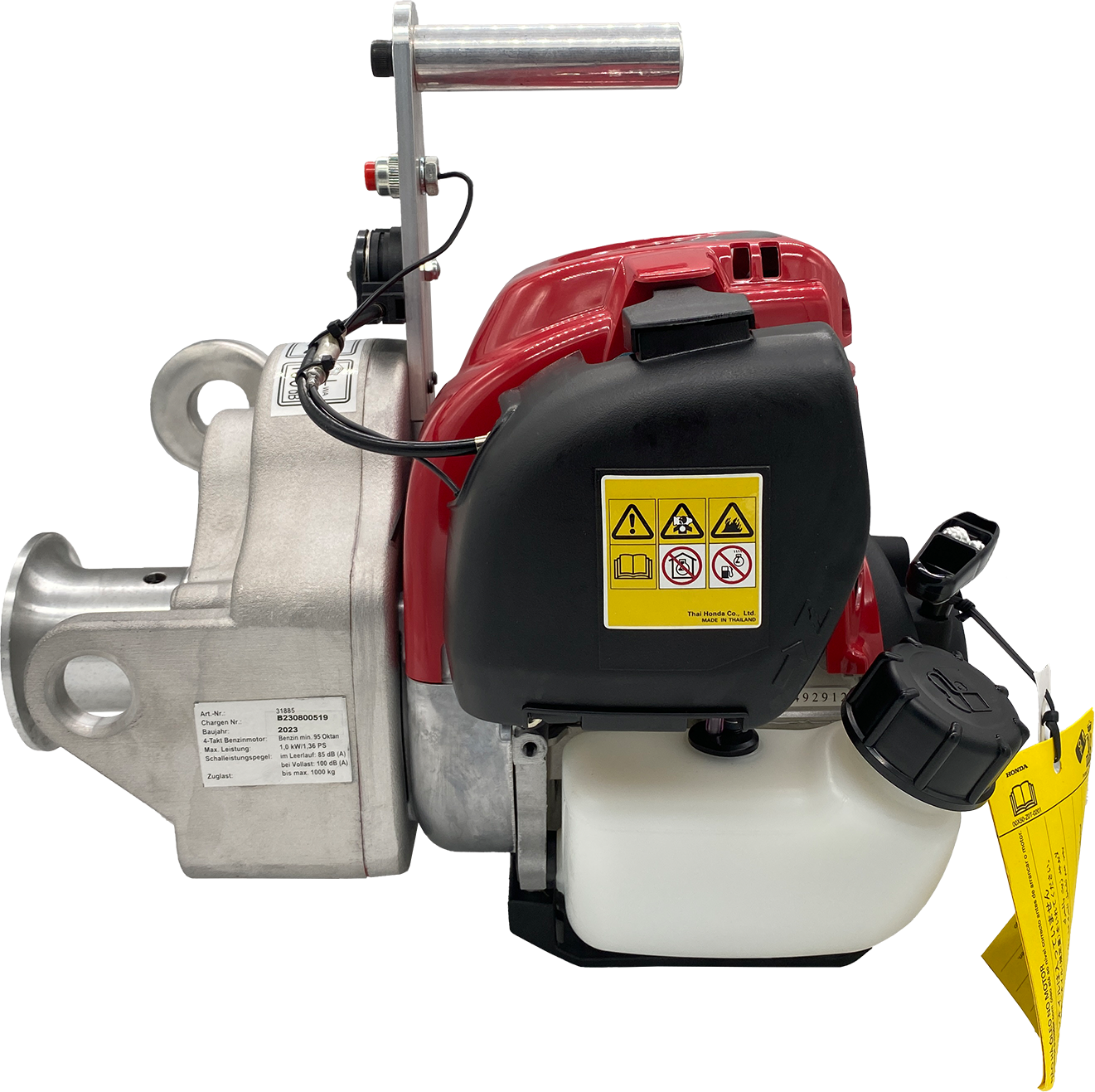

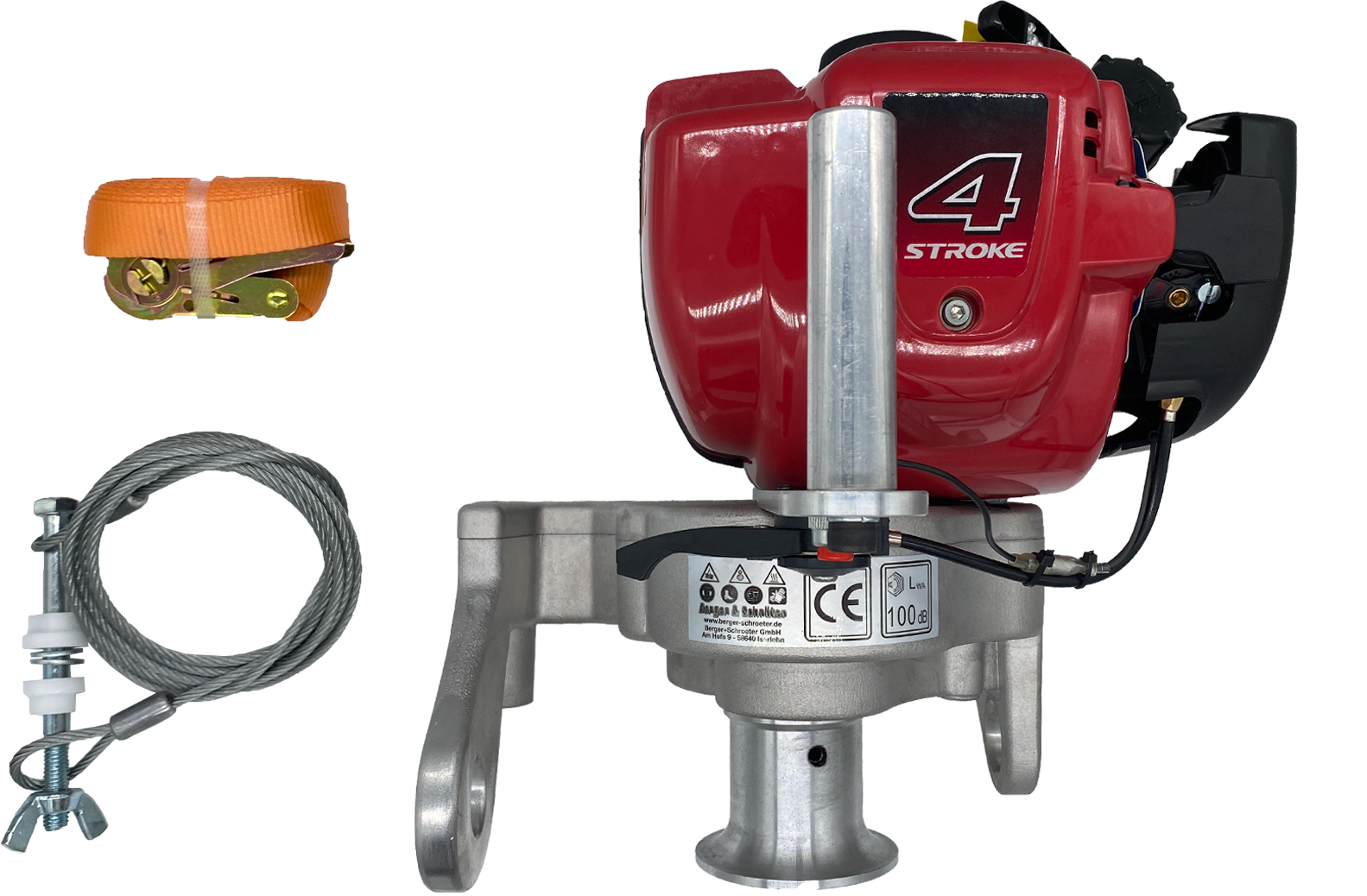

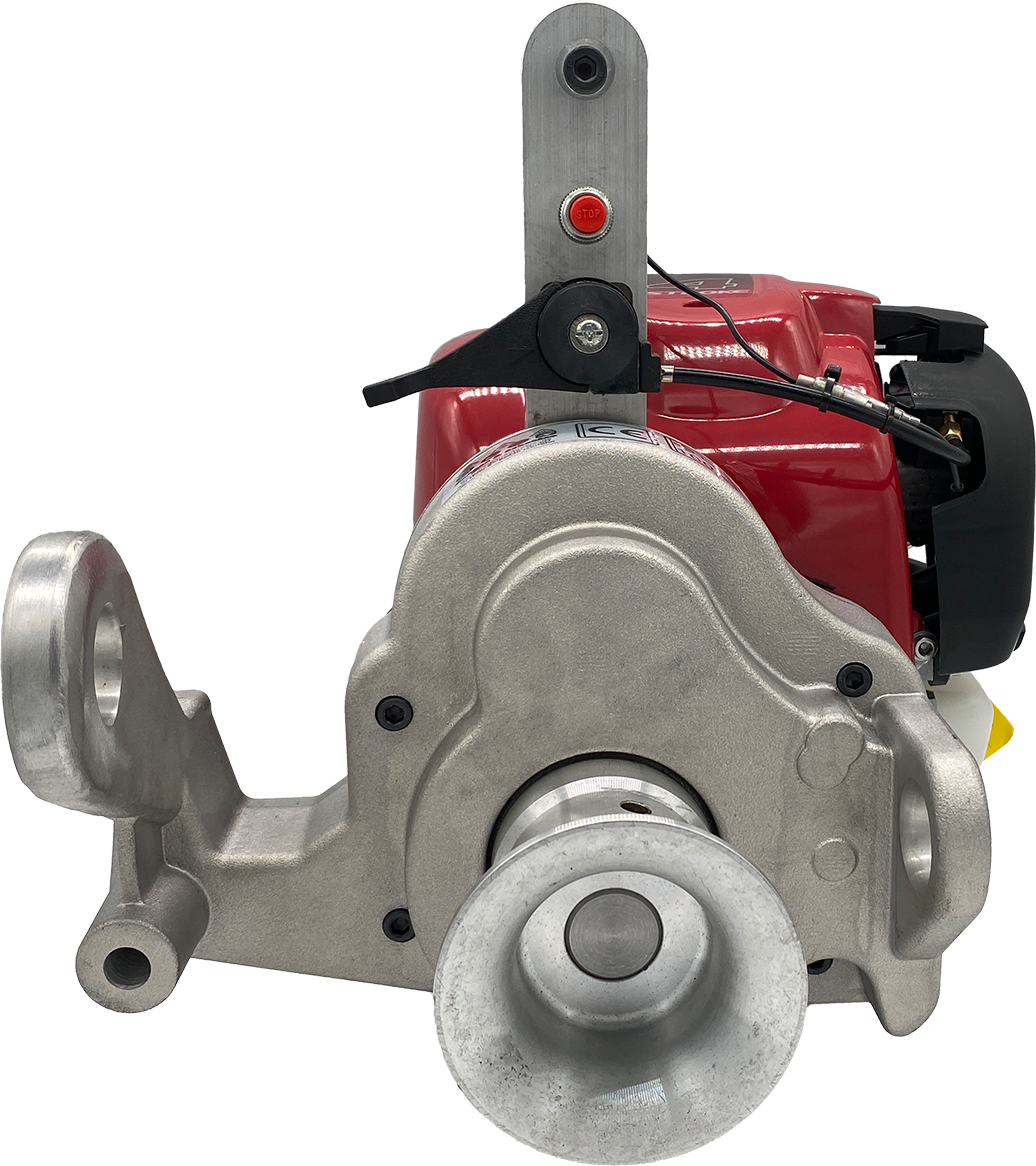

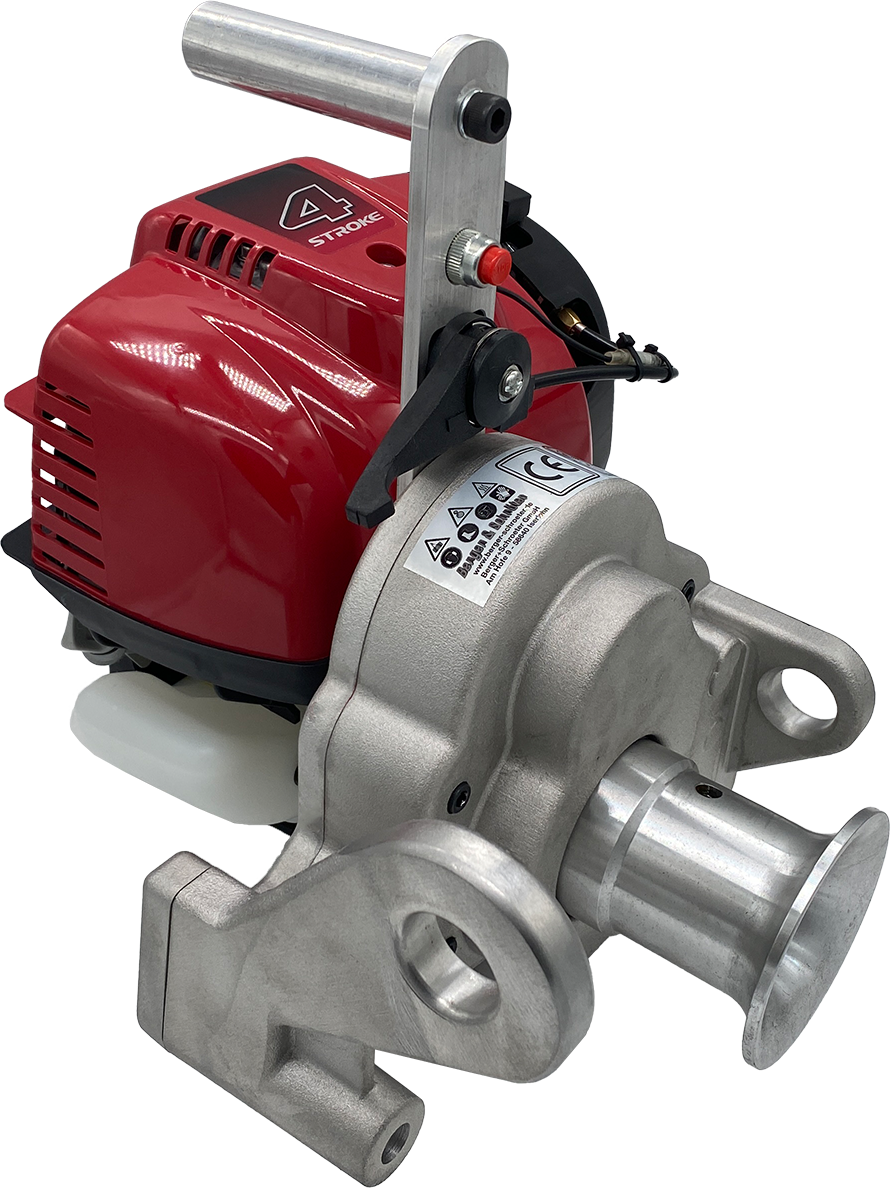

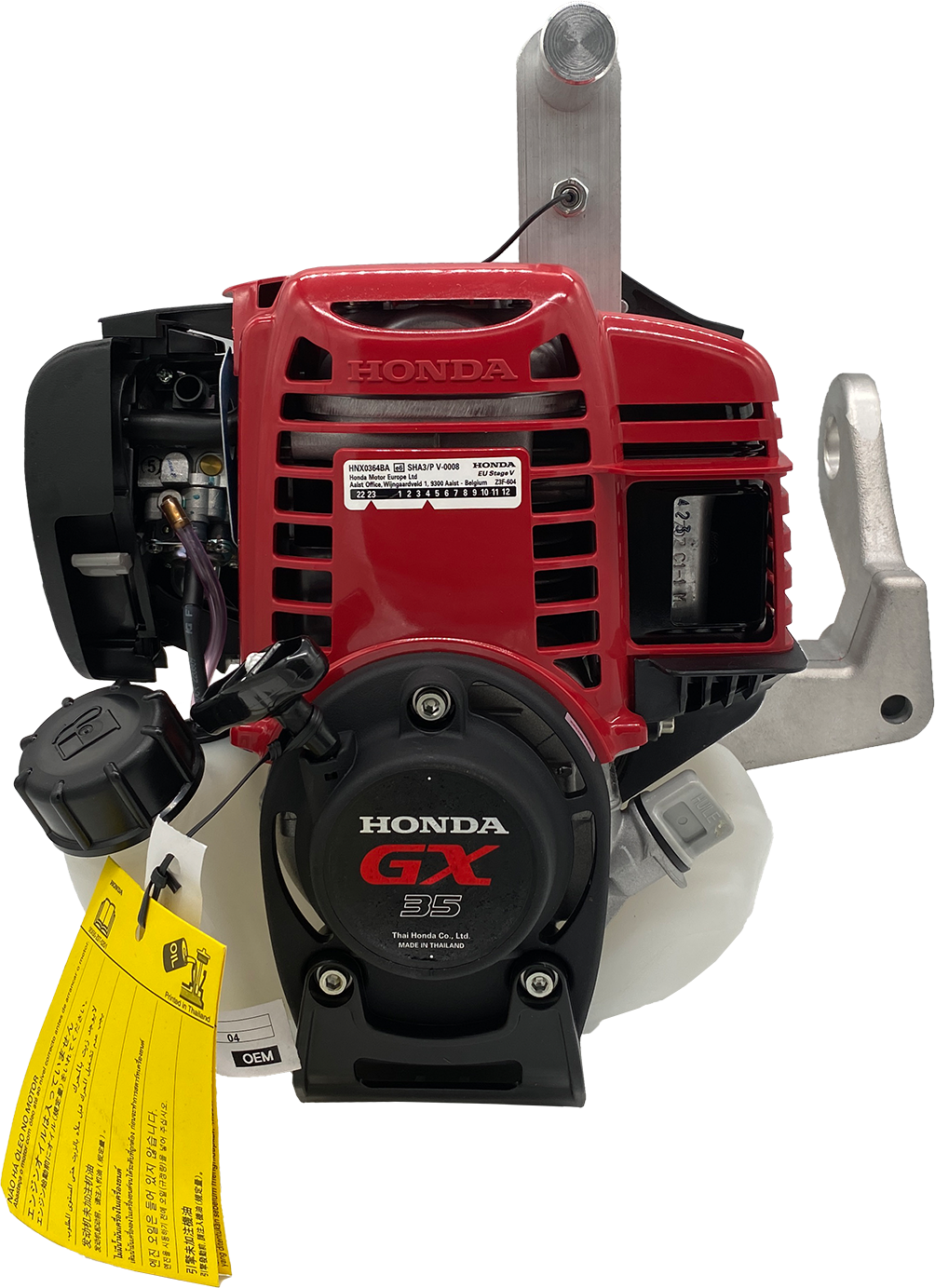

Lightweight and portable motor capstan winch with a genuine Honda GX35 new generation engine. The capstan winch is universally applicable and pulls anything, such as boats, lumber, vehicles, and much more, with a consistent pulling force of up to 1,000 kg. With a pulley (not included), you can double the pulling force. A rope thickness of at least 8 mm, max. 10 mm, with a minimum breaking load of 2,500 kg is required (not included). The capstan winch is designed to pull a rope; the rotating capstan generates the pulling force. You control and guide the rope manually. Technical specifications: Air-cooled Honda GX 35, the world's first 360° tiltable 4-stroke engine, for use in any position. The OHC design with maintenance-free, low-noise timing belt makes the engines more compact and lightweight. Easy starting and excellent acceleration are ensured. High-quality materials and specially manufactured components ensure reliable long-term use. The engines comply with the most stringent emissions regulations and have low fuel and oil consumption.
1-cylinder 4-stroke OHC petrol engine, 35.8 cm³/ 1.0 kw/1.36 HP gear ratio 220:1, approx. tank capacity 0.63 l, torque 1.6 Nm at 5000 rpm, rope size min. 8 mm, max. 10 mm polyester, dimensions approx. 30 cm (H) x 38 cm (L) x 30 cm (D), pulling force up to max. 1,000 kg, weight only approx. 9 kg, pulling speed 9.5 m/min to 6.7 m/min.
