rope hoist 12V, 3150 kg with synthetic rope
Berger + Schröter GmbH
Prices are hidden for this category and your customer group
Available, delivery time: 4-5 Tage
Product number:
31766
Hersteller:
Berger + Schröter GmbH
EAN:
4042504317662
Gewicht:
11 kg
Lagerbestand:
38
Product information "rope hoist 12V, 3150 kg with synthetic rope"

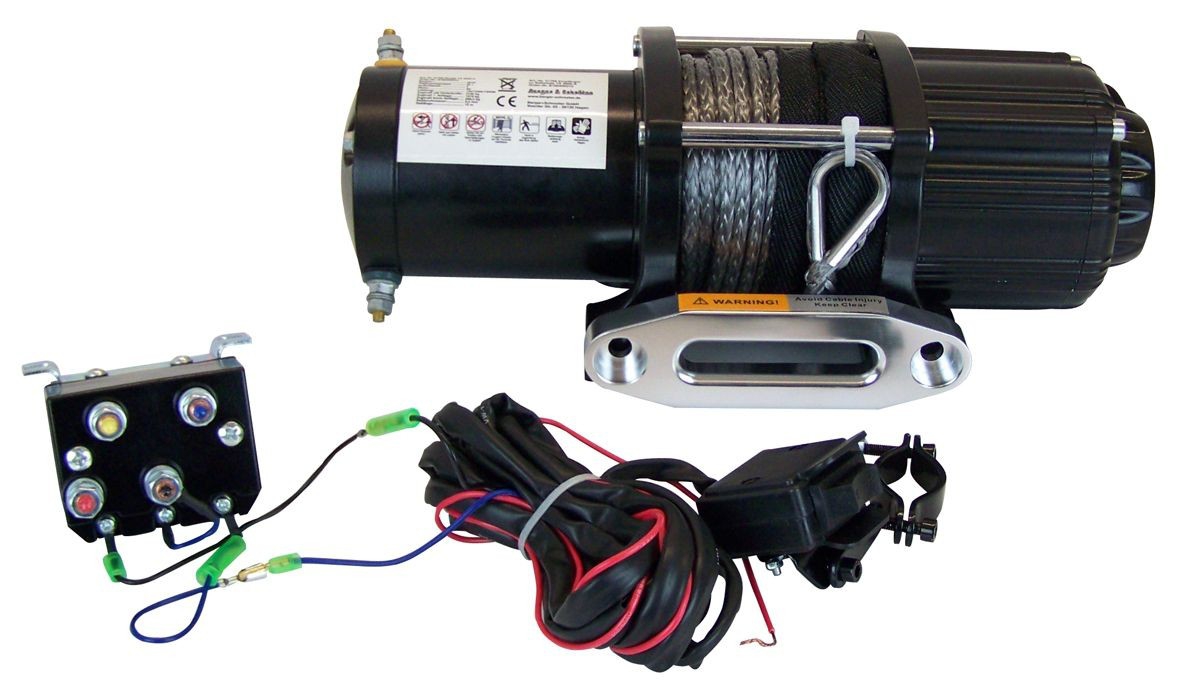

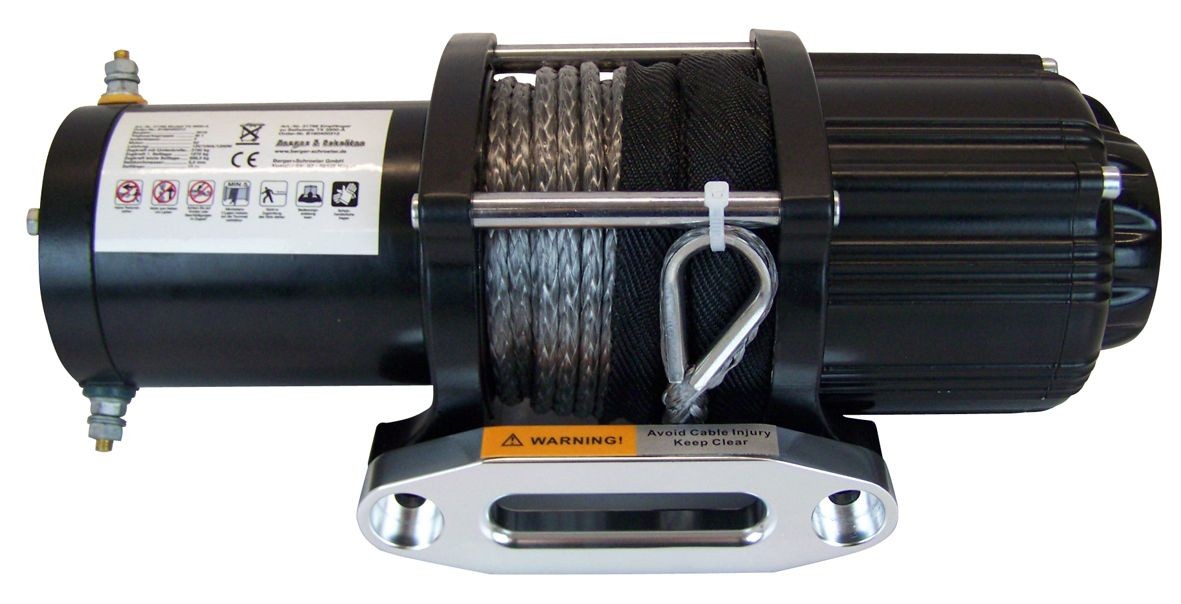

12V motor winch with synthetic rope
- Pulling force up to 3150kg
- For car and especially suitable for mounting on quads, ATV (4x4) and commercial vehicles

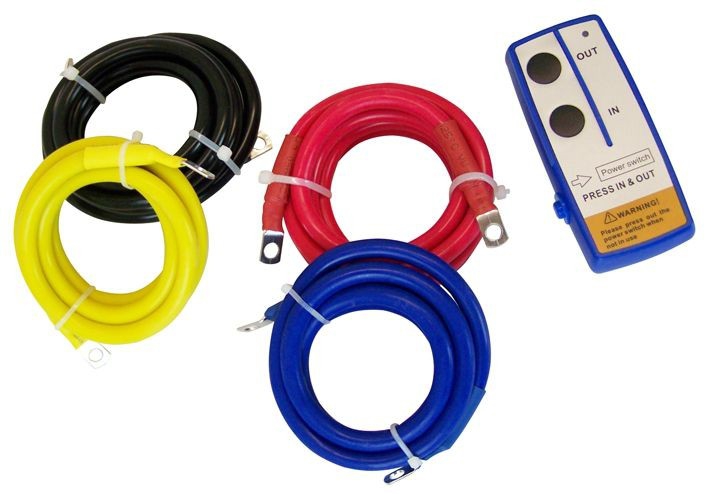

- Electronic forward and return via cable remote control or radio remote control
- Manual freewheel and automatic brake in case of power failure
- Important: Never unroll the rope completely, only up to the red mark on the rope!
- 3-speed planetary gear and aluminium cable window
- The pulling speed 680kg - 2.4 m/min
- With detailed assembly instructions
Technical data:
- Tractive force 3150kg when using a deflection roller (not included)
- Load capacity approx. 11A at start-up up to 100A at full load
- Gear ratio 153:1
- Motor 12V direct current 1.2KW
- Dimensions: 335 x 114 x 120mm
- Drum dimensions: 38mm diameter - width 73mm
- Synthetic rope 15m long, 5.5mm diameter
- Mounting plate: 124 x 76mm
- Weight: 11kg
